300W/500W/600W Co2 high power Laser Glass tube

Detailed

Product details：

Underlying  Power(W)	Maximum power(W)	Net Size (mm)	Packing size(mm	Net  Weight(KG)	Gross weight(KG)
300W	320W	1810x245x147mm	1960x370x360mm	17	32
500W	530W	1870x315x147mm	2010x400x360mm	28	45
600W	700W	1870x400x214mm	2010x500x400mm	35	57

Life-time：10,000-12,000 hours,

Warranty period：1 year

Working Principle：high-pressure discharge stimulate high concentration CO2 to generate laser.

Laser Wave Length：10.6um。

Laser Mode：low order mode.

Water-Cooling：purified water, appropriate temperature 10-35℃.

Working Environment：temperature 5-35℃, humidity 10-60%, clean environment, no serious pollution.

Working Current：25~30mA is appropriate (excessive current will affect laser power and laser tube lifetime.

Safety Demand：CO2 laser tube outputs invisible light, positive with high pressure, if necessary, eyewear is essential.

Laser State：Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in normal condition; if the laser is white, it means the laser power is attenuate. ( Laser tube is consumable, please change a new one when it can’t meet demand due to attenuation. )

Laser State:

1、 There are two points to support the laser tube at two sides, when you install the laser tube, the two points should be in 1/4 of the laser tube;

2、On the basis of cooling water above-in and below-out, if you rotate the laser tube slightly, it will affect laser spot and laser power.

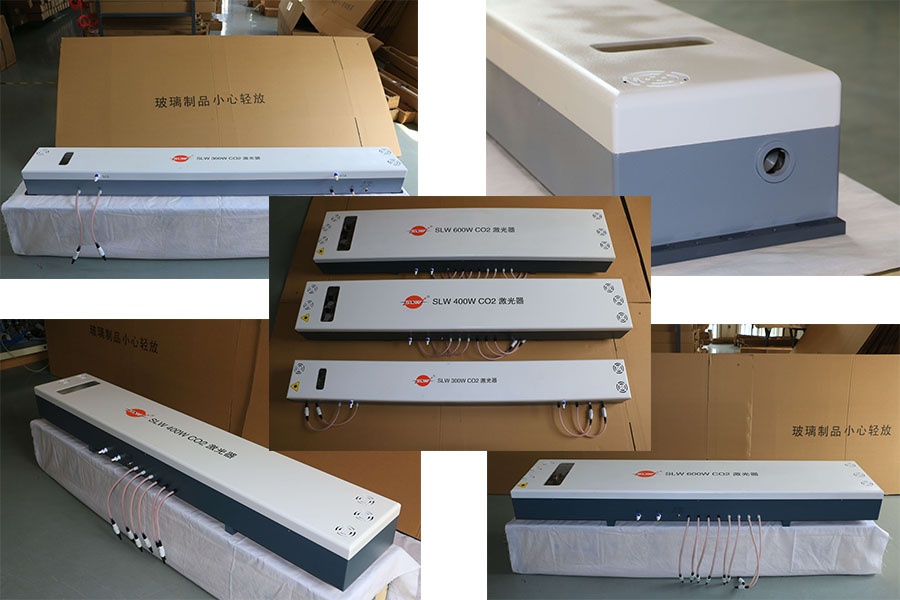

Package：
